Joystick Drift Fix Mod – Adjustable Analog Thumbstick Repair Board for PS5, PS4, Xbox One & Series Controllers

Description

Permanently Fix Stick Drift Without Replacing Joysticks

Tired of controller drift ruining your games? This innovative drift fix mod offers a permanent solution without the cost and complexity of replacing entire analog stick modules. Simply install the adjustable PCB board and calibrate your controller back to perfect center.

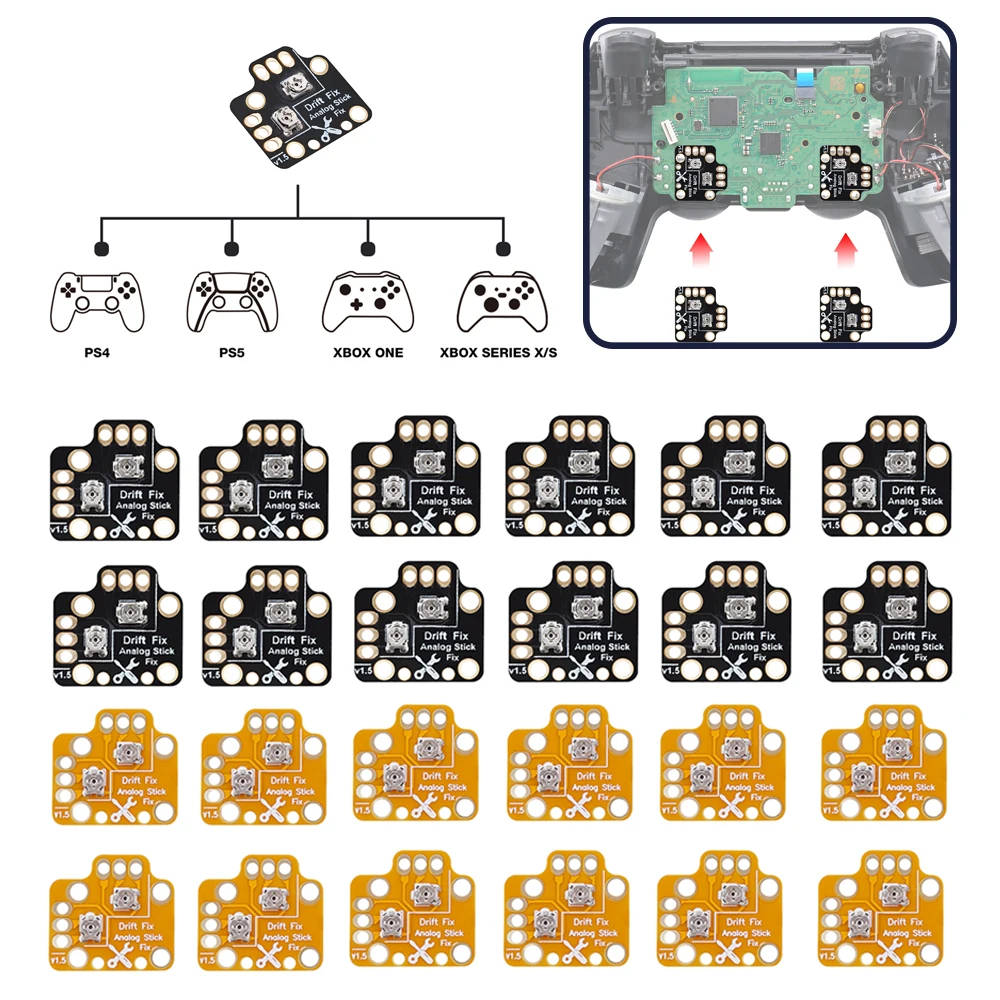

Compatible Controllers:

• Sony PlayStation 5 DualSense
• Sony PlayStation 4 DualShock 4
• Microsoft Xbox One (all models)
• Microsoft Xbox Series X/S

How It Works:
Unlike traditional fixes that only temporarily mask drift, this mod adds adjustable potentiometers directly to your controller’s analog stick circuit. When drift occurs from normal wear, you simply open the controller and recalibrate using the adjustment screws – no parts replacement needed.

Product Features:

•  Perfect Compatibility: Designed specifically for PS4, PS5, Xbox One, and Xbox Series controllers
•  Permanent Solution: Fix drift by adjusting the mechanism back to the dead point
•  Reusable: If drift returns after extended use, simply readjust – no new parts needed
•  Non-Destructive: No physical modification to controller shell required
•  Cost Effective: Repair multiple times for the price of one fix

Technical Specifications:

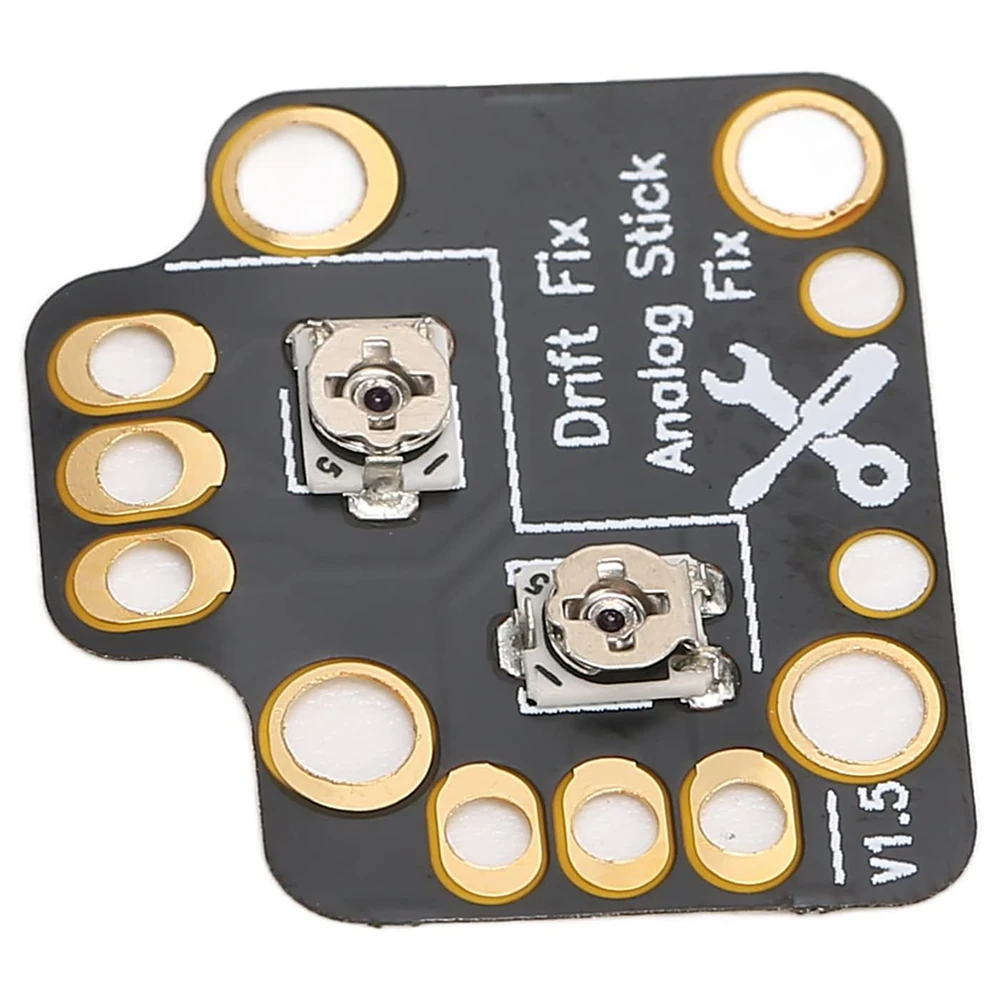

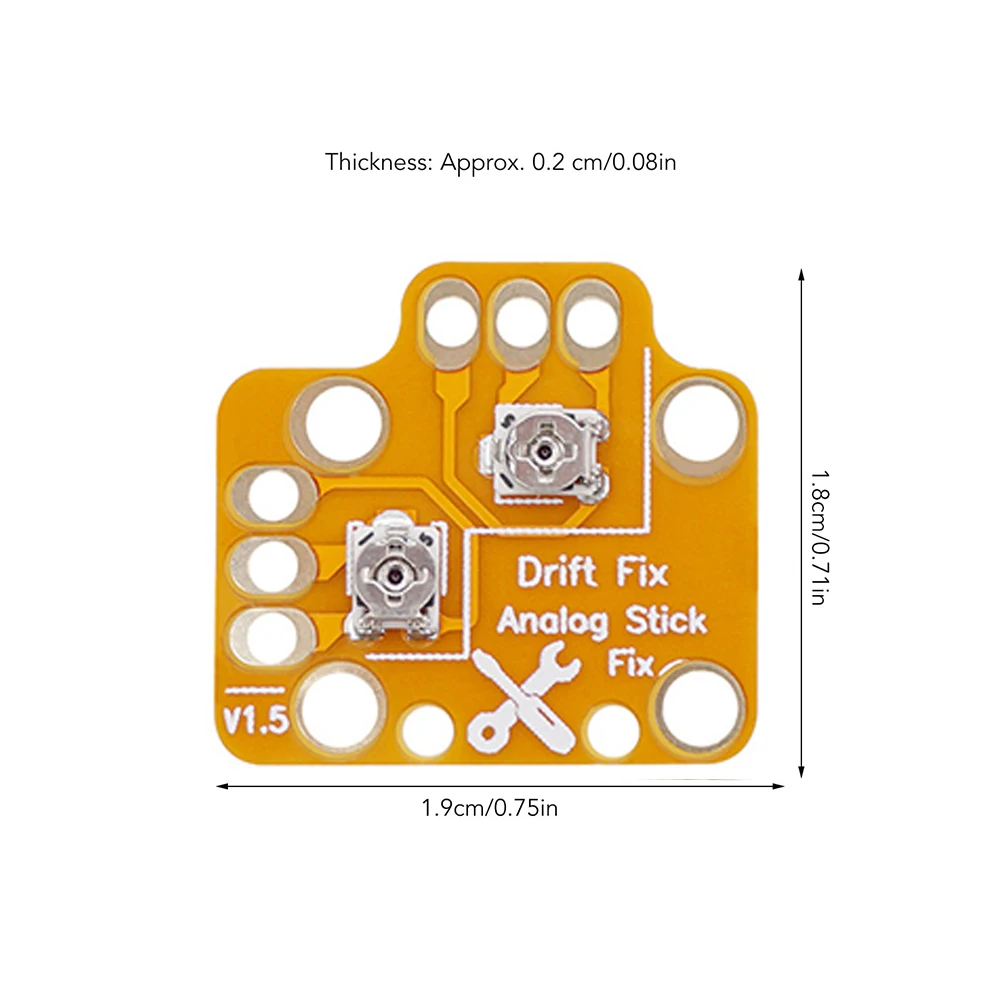

• Part Type: Drift Fix Mod Board / Analog Calibration PCB
• Function: Adjustable drift correction for analog thumbsticks
• Technology: Adjustable potentiometer circuit board
• Installation: Soldering to analog stick PCB required (4-6 solder points)
• Condition: New
• Electric: Yes – active adjustment circuit

Calibration Process:

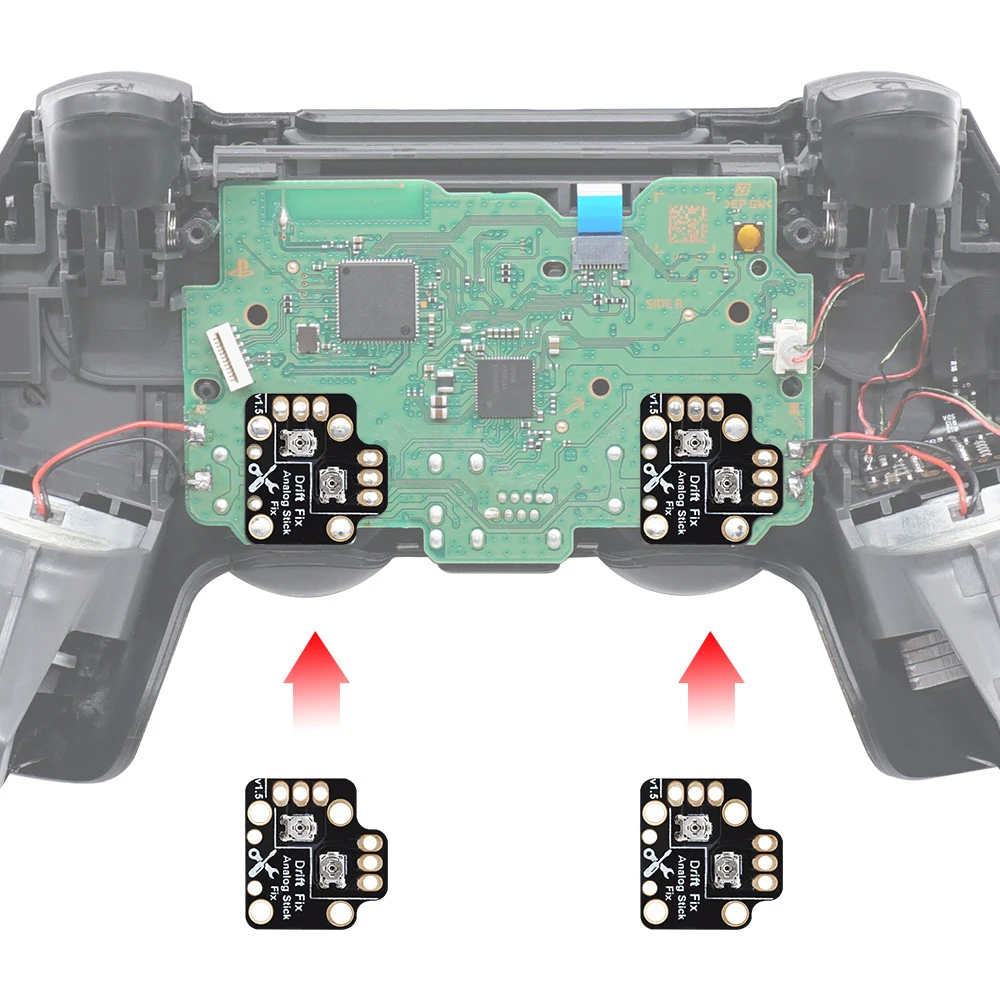

1. Install the drift fix board by soldering to analog stick pins
2. Reassemble the controller
3. Connect to calibration website (gamepad-tester.com or dualshock-tools.github.io)
4. Adjust the trim potentiometers until sticks return to perfect center
5. If drift returns months later, simply reopen and readjust

Common Issues This Resolves:

• Controller stick drift (camera/character moves without input)
• Inaccurate or unresponsive analog sticks
• Dead zones in joystick movement
• Worn-out stick mechanisms requiring frequent replacement

Installation Requirements:

• Soldering skills required: Must solder 4-6 points to analog stick PCB
• Tools needed: Soldering iron, flux, tweezers, screwdriver for controller disassembly
• Difficulty: Intermediate – requires controller disassembly and precision soldering
• Time: 30-60 minutes for first installation

What’s Included:

• 1× Drift Fix Mod PCB Board (per stick)
• Installation guide reference

Important Notes:

• One board required per analog stick (purchase 2 for left + right sticks)
• Adjustment requires opening the controller each time drift recalibration is needed
• Professional installation recommended if not comfortable with soldering
• Controller must be opened to access adjustment screws for recalibration
