Description
One board replacement. Three common failure points fixed.

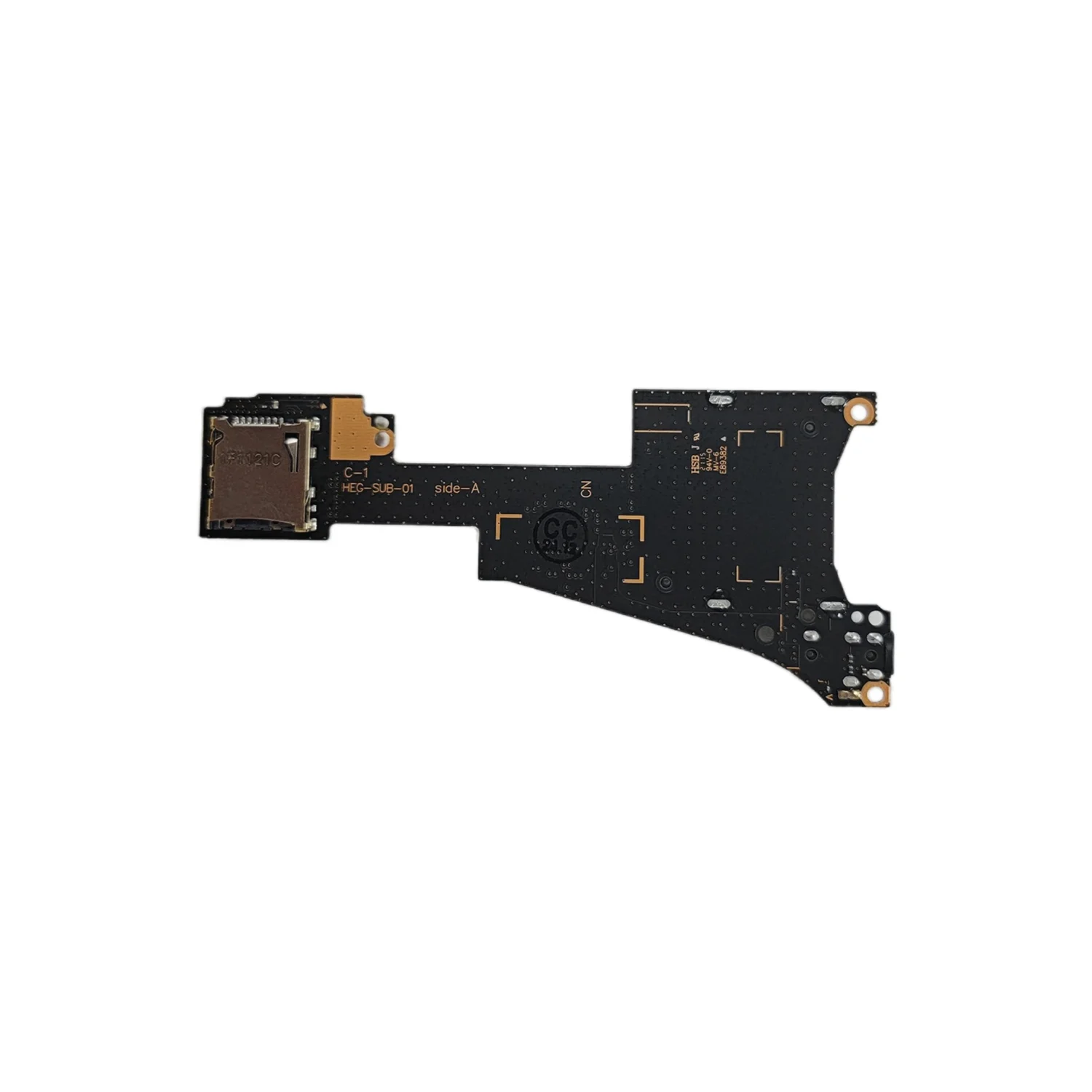

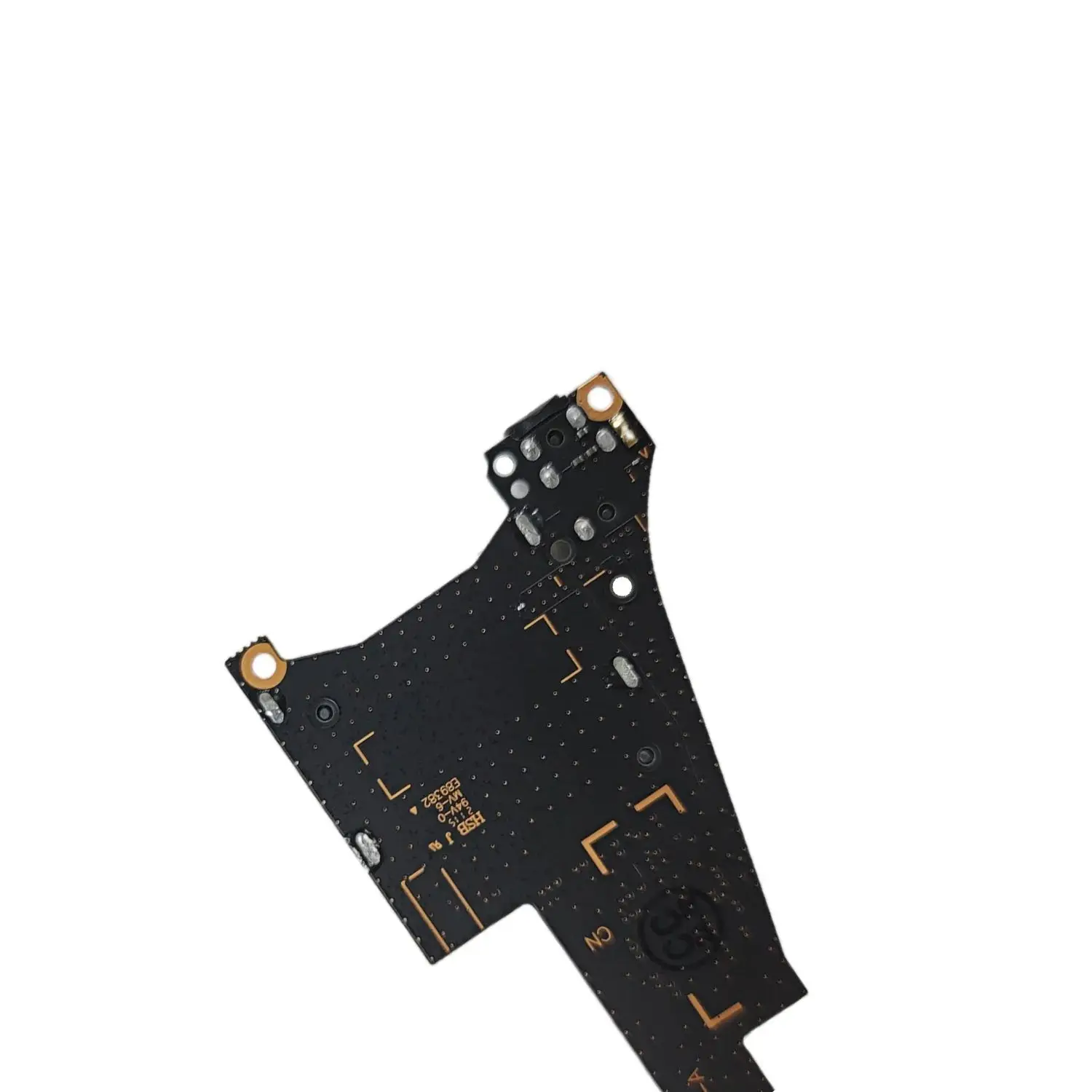

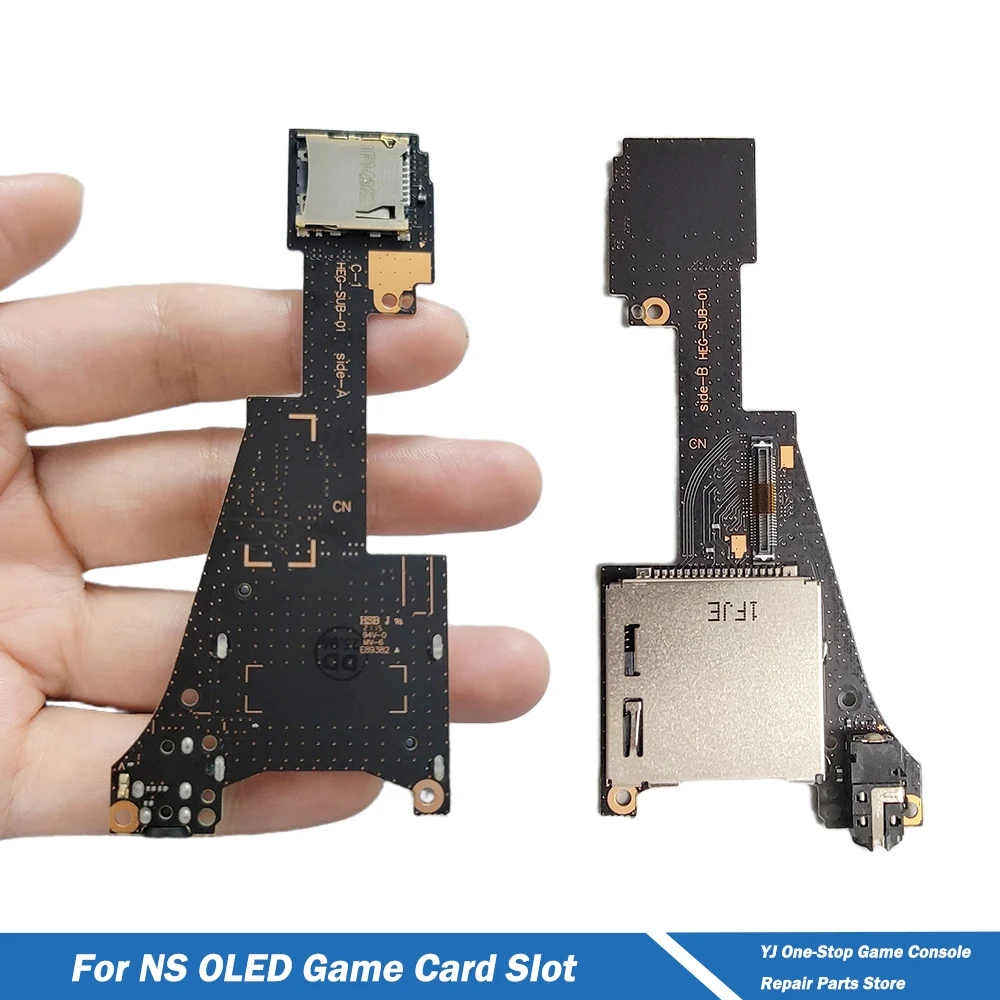

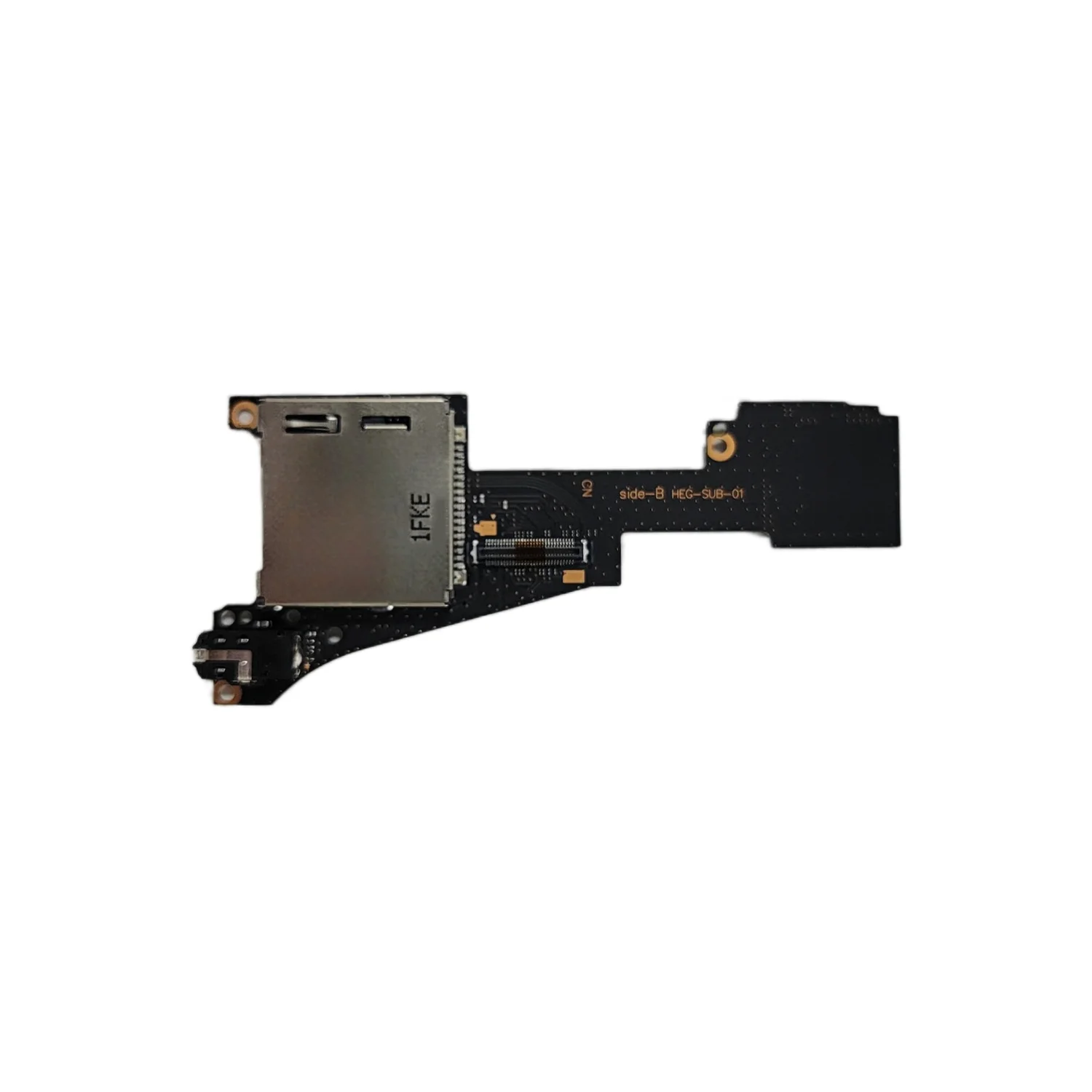

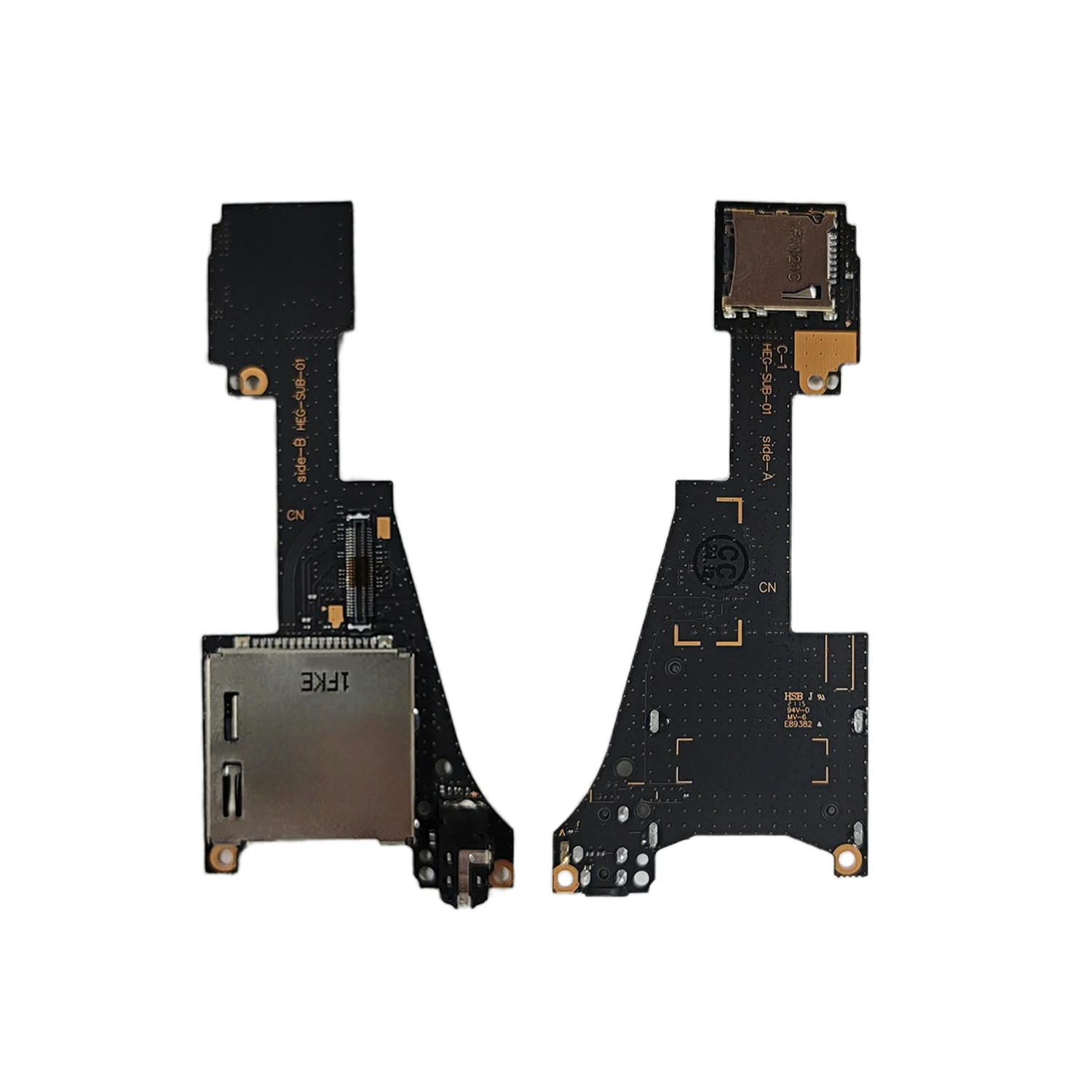

The Nintendo Switch OLED combines the game card reader, headphone jack, and microSD card slot into a single integrated board assembly. When any of these three components fails — whether the console stops reading game cards, the headphone jack produces no audio, or the microSD card is no longer detected — replacing this full board assembly is the most efficient repair path rather than attempting individual component-level fixes.
What this board fixes:
Game Card Reader:
- Console not recognizing or detecting game cards on insertion
- Game card errors or intermittent reading failures
- Bent or damaged pins inside the card slot preventing contact
- “No game card inserted” error with a valid card present
Headphone Jack (3.5mm):
- No audio output through headphones
- Headphone jack not detected by the console
- Crackling or intermittent audio through the 3.5mm port
- Console stuck in headphone mode

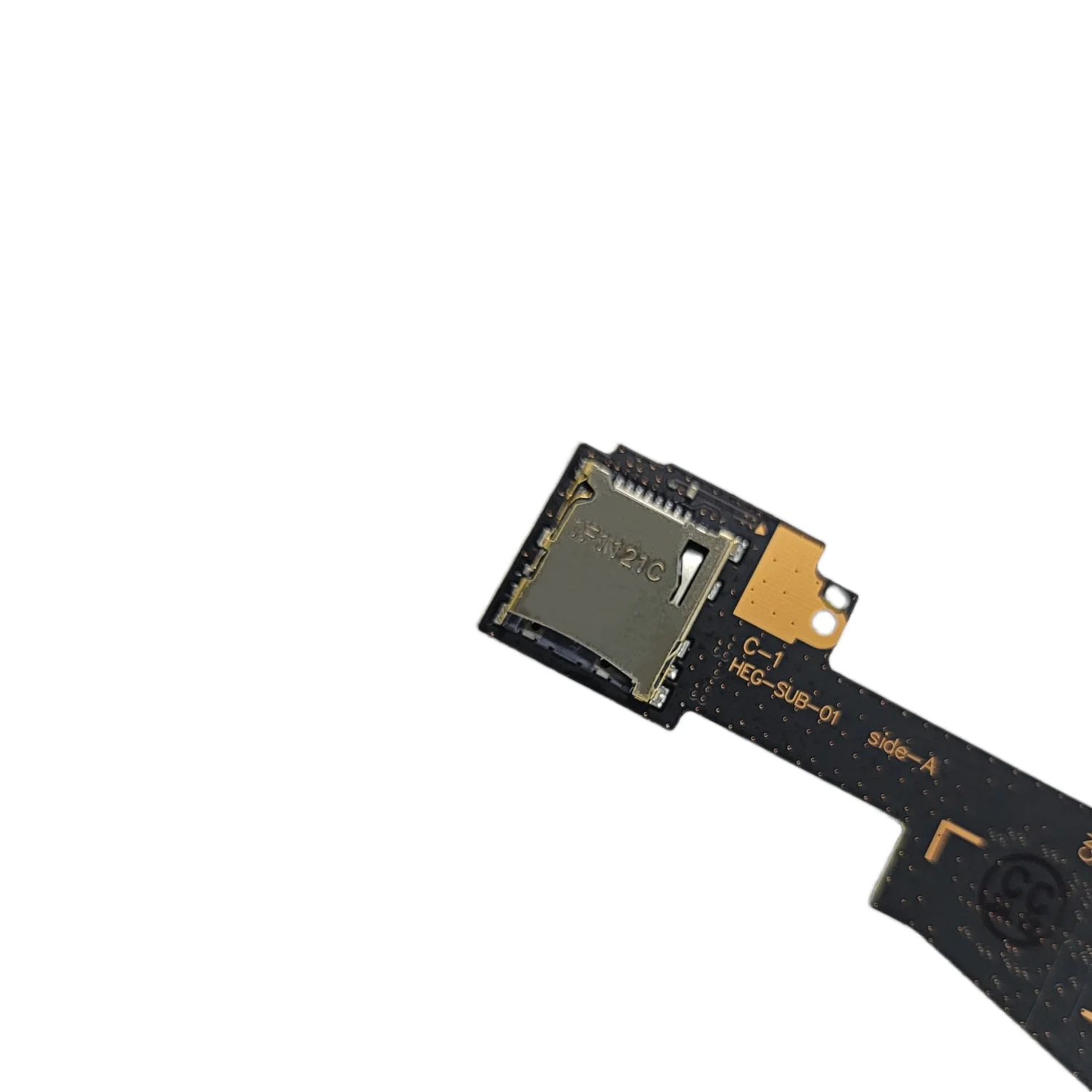

microSD Card Slot:
- microSD card not detected after insertion
- Storage expansion not recognized by the system
- Intermittent microSD reading errors during gameplay
Key details:
- Complete assembly — Game card slot, 3.5mm headphone/mic jack (CTIA standard), and microSD socket included as a single board unit
- Switch OLED specific — Designed for Nintendo Switch OLED console body. Not compatible with original Nintendo Switch, Switch Lite, or Nintendo Switch 2
- Direct replacement — Original-spec board matching factory dimensions and connector layout
- Headphone jack spec — 3.5mm 4-pole stereo CTIA standard, matching official Nintendo Switch OLED audio specifications
- microSD compatibility — Supports microSD, microSDHC, and microSDXC cards up to 2TB after replacement
Compatible with:
- Nintendo Switch OLED (console body only)
⚠️ Important compatibility note: Despite the supplier description referencing Switch Lite, this board assembly is designed for Nintendo Switch OLED only. The Switch Lite uses a different internal board layout. Confirm your exact console model before ordering.
